CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Transfer Driven Gear

ASSEMBLY

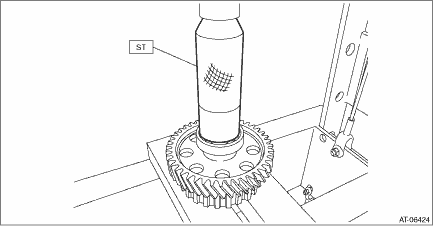

1. Using the ST, install the ball bearing.

ST 899580100

INSTALLER
