Subaru Crosstrek Owners Manual: Type D

Type D

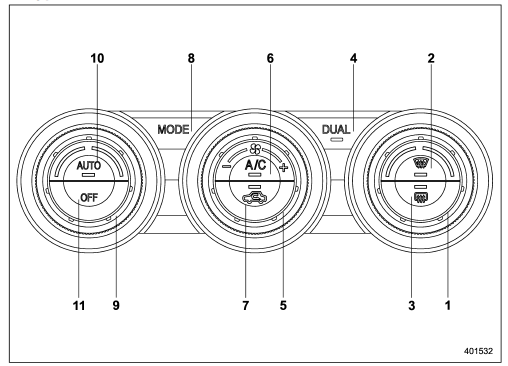

  1. Temperature control dial (Refer to "Automatic climate control operation (type B, C and D)" F4-7 and/or "Temperature control
  2. Defroster button (Refer to "Airflow mode selection"
  3. Rear window defogger button (Refer to "Defogger and deicer"
  4. DUAL mode button (Refer to ""DUAL" mode (type D)"
  5. Fan speed control dial (Refer to "Fan speed control"
  6. Air conditioner button (Refer to "Air conditioner control"
  7. Air inlet selection button (Refer to "Air inlet selection"
  8. Airflow mode selection button (Refer to "Airflow mode selection"
  9. Temperature control dial (Refer to "Automatic climate control operation (type B, C and D)" F4-7 and/or "Temperature control"
  10. AUTO button (Refer to "Automatic climate control operation (type B, C and D)"
  11. OFF button (Refer to "Automatic climate control operation (type B, C and D)"
Type C
Airflow mode selection dial (Refer to "Airflow mode selection" Defroster button (Refer to "Airflow mode selection" Rear window defogger button (Refer to "Defogger and deicer" Fan sp ...

Automatic climate control operation (type B, C and D)
When this mode is selected, the fan speed, airflow distribution, air-inlet control, and air conditioner compressor operation are automatically controlled. To activate this mode, perform the follow ...

Other materials:

Pressure switch (triple pressure switch) Inspection
HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Pressure Switch (Triple Pressure Switch)INSPECTION1. Connect the manifold gauge to the service valve on the high-pressure side.2. Disconnect the connector.3. Start the air conditioner, and check the operating pressure of switch by turning the compressor ...

Removal
POWER ASSISTED SYSTEM (POWER STEERING) > Electric Power Steering GearboxREMOVALCAUTION:• The power steering control module continues to operate after the engine stops and calculate the temperature in the control module. Therefore, before starting service of the power steering system which r ...

Inspection
SECURITY AND LOCKS > Steering Lock CMINSPECTION1. Check if the steering lock is released when you start the engine using the push button ignition switch.2. If the system does not operate normally as the result of inspection, refer to “General Diagnostic Table” of the “KEYLESS AC ...
