Subaru Crosstrek Service Manual: Removal

WHEEL AND TIRE SYSTEM > Tire Pressure Monitoring System

REMOVAL

1. TRANSMITTER (TIRE INFLATION PRESSURE SENSOR)

1. Remove the wheels from the vehicle. Tire and Wheel > REMOVAL">

2. Remove the tires from wheels.

CAUTION:

Use a tire changer when removing the tire from the wheel.

3. Loosen the screw to remove the transmitter from the valve stem.

CAUTION:

Do not reuse the valve and screw.

Replace the valve and screw with a new part even when reusing transmitter.

(1)

Wheel

(2)

Transmitter

(3)

Screw

(4)

Valve

4. Remove the valve from the wheel.

2. TPMS & KEYLESS CONTROL MODULE

NOTE:

TPMS control module is integrated with the keyless entry control module.

Keyless entry model

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

2. Remove the trim panel - rear apron LH. Rear Quarter Trim > REMOVAL">

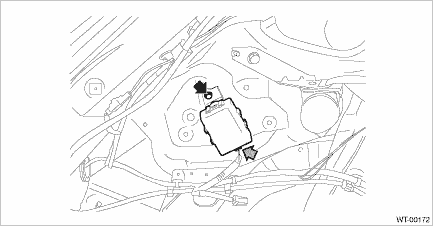

3. Remove the TPMS & keyless control module.

(1) Disconnect the connector.

(2) Remove the bolt and then remove the TPMS & keyless control module.

3. TPMS CM

NOTE:

TPMS control module is separated from the keyless entry control module.

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

2. Remove the trim panel - rear apron LH. Rear Quarter Trim > REMOVAL">

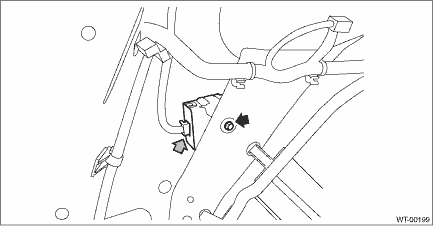

3. Remove the TPMS CM.

(1) Disconnect the connector.

(2) Remove the bolts to remove the TPMS CM.

Adjustment
WHEEL AND TIRE SYSTEM > Tire Pressure Monitoring SystemADJUSTMENTRe-register the transmitter ID when transmitter has been replaced. Register Transmitter (ID)"> ...

Installation
WHEEL AND TIRE SYSTEM > Tire Pressure Monitoring SystemINSTALLATION1. TRANSMITTER (TIRE INFLATION PRESSURE SENSOR)CAUTION:Use the new transmitter assembly or replace the new valve and screw, when i ...
