Subaru Crosstrek Service Manual: Removal

SEATS > Front Seat

REMOVAL

CAUTION:

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">

1. Remove the headrest assembly - front.

2. Turn the ignition switch to OFF.

3. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

4. Remove the slide rail assembly installing bolt.

(1) Tilt the backrest assembly forward and move the front seat to the front most position.

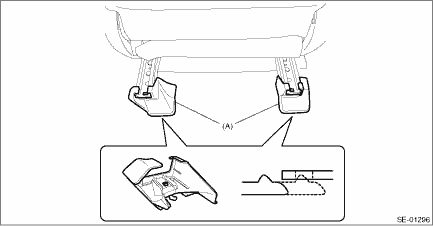

(2) Remove the cover - bolt rear (A) and remove the bolts.

(3) Move the front seat to the rearmost position, and remove the bolts.

5. Disconnect the connector under the front seat.

Seat belt warning light connector (driver’s seat)

Occupant detection system harness connector (passenger’s seat) Airbag Connector > PROCEDURE">

Side airbag connector Airbag Connector > PROCEDURE">

Seat heater connector (model with seat heater)

Buckle switch RH connector (passenger’s seat) Airbag Connector > PROCEDURE">

6. Take out the front seat from the vehicle.

CAUTION:

Be careful not to damage the body.

Assembly
SEATS > Front SeatASSEMBLYCAUTION:• Do not confuse the harness routing of the side airbag harness and the seat belt inner - front harness, etc. Assembling with harnesses improperly routed may ...

Disassembly
SEATS > Front SeatDISASSEMBLY1. DRIVER’S SEATCAUTION:Before assembling, make sure how the harnesses such as the side airbag harness and the seat belt inner - front harness are routed in order ...
