Subaru Crosstrek Service Manual: Removal
POWER ASSISTED SYSTEM (POWER STEERING) > Power Steering Control Module
REMOVAL
1. Disconnect the ground cable from battery. NOTE">
2. Remove the power steering control module.

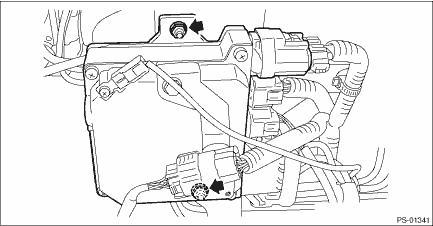

(1) Disconnect the connector of the power steering control module.
(2) Remove the nuts, and remove the power steering control module.
Installation
POWER ASSISTED SYSTEM (POWER STEERING) > Power Steering Control ModuleINSTALLATION1. Install each part in the reverse order of removal.CAUTION:Make sure that the connector is securely locked.Tighte ...
