Subaru Crosstrek Service Manual: Removal

INTAKE (INDUCTION)(H4DO) > Air Intake Boot

REMOVAL

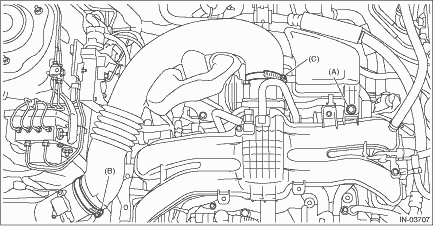

1. Remove the clip (A) from the air intake boot.

2. Loosen the clamp (B) securing the air cleaner case (rear) to the air intake boot.

3. Loosen the clamp (C) which secures the throttle body to the air intake boot.

4. Disconnect the PCV hose and remove the air intake boot.

Inspection
INTAKE (INDUCTION)(H4DO) > Air Intake BootINSPECTION1. Check that the air intake boot has no deformation, cracks or other damages.2. Inspect that no foreign objects are mixed in the air intake boot ...

Installation
INTAKE (INDUCTION)(H4DO) > Air Intake BootINSTALLATIONInstall in the reverse order of removal.Tightening torque:3 N·m (0.3 kgf-m, 2.2 ft-lb) ...
