Subaru Crosstrek Service Manual: Removal

HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Expansion Valve

REMOVAL

1. Disconnect the ground cable from battery. NOTE">

2. Using the refrigerant recovery system, discharge refrigerant. Refrigerant Recovery Procedure > PROCEDURE">

3. Remove the air intake boot. Air Intake Boot > REMOVAL">

CAUTION:

Move aside the air intake boot to perform the operation without disconnecting the PCV hose.

4. Remove the expansion valve - cooling.

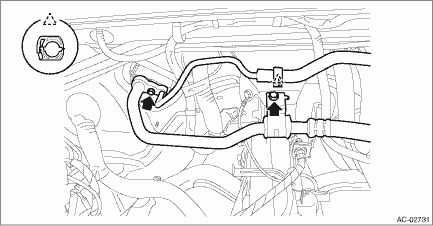

(1) Remove the clips and bolts, and detach the hose - pressure suction and the pipe - evaporator cooling.

CAUTION:

Seal the disconnected hose, pipe and engaging part of expansion valve with a plug or vinyl tape to prevent foreign matter from entering.

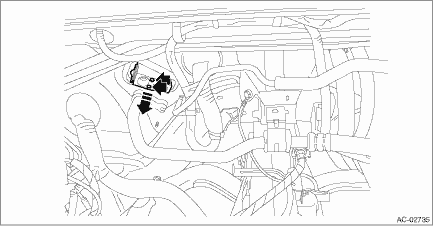

(2) Remove the bolt, and remove the expansion valve - cooling.

CAUTION:

Seal the pipe and engaging part of expansion valve with a plug or vinyl tape to prevent foreign matter from entering.

Preparation tool:

Hexagon wrench: 4 mm (0.16 in)

Installation
