Subaru Crosstrek Service Manual: Removal

Subaru Crosstrek Service Manual / Fuel injection (fuel systems)(h4do) / Throttle body / Removal

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Throttle Body

REMOVAL

1. Disconnect the ground cable from battery.

2. Lift up the vehicle.

3. Remove the under cover. Front Under Cover > REMOVAL">

4. Drain approximately 3.0 L (3.2 US qt, 2.6 Imp qt) of coolant. Engine Coolant > REPLACEMENT">

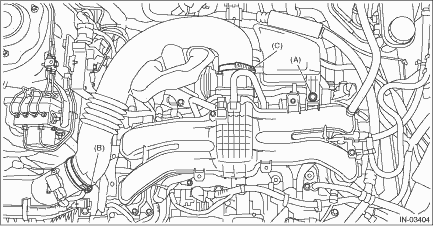

5. Remove the clip (A), and loosen the clamps (B) and (C) securing the air intake boot.

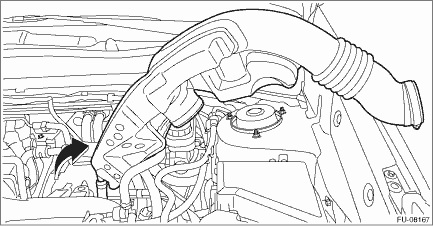

6. Remove the air intake boot from the air cleaner case (rear) and throttle body, and move the air intake boot aside so that it does not interfere with the work.

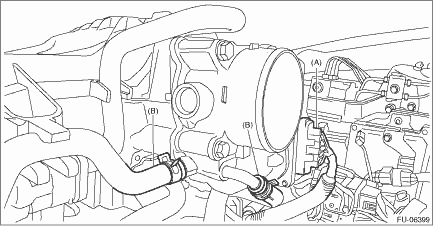

7. Disconnect the connectors (A) from the throttle position sensor.

8. Disconnect the preheater hose (B) from the throttle body.

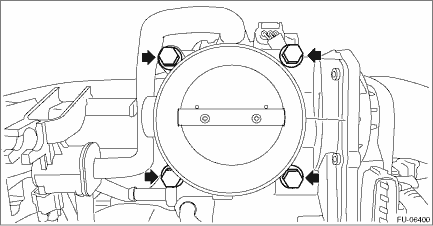

9. Remove the throttle body from the intake manifold.

Inspection

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Throttle BodyINSPECTION1. THROTTLE SENSOR (METHOD WITH CIRCUIT TESTER)1. Remove the glove box. Glove Box > REMOVAL">2. Turn the ignition switch to ...

Installation

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Throttle BodyINSTALLATIONInstall in the reverse order of removal.NOTE:Use a new gasket.Tightening torque:8 N·m (0.8 kgf-m, 5.9 ft-lb) ...
