Subaru Crosstrek Service Manual: Removal
FRONT SUSPENSION > Front Stabilizer
REMOVAL
1. Lift up the vehicle, and then remove the left and right front wheels.
2. Remove the under cover - front. Front Under Cover > REMOVAL">
3. Remove the front crossmember support. Front Crossmember Support Plate > REMOVAL">

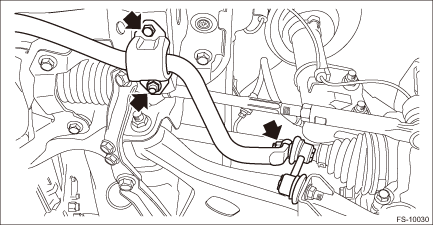

4. Remove the front stabilizer.
(1) Remove the left and right stabilizer links.
(2) Remove the clamp - stabilizer bushing on the left and right sides.
Installation
