Subaru Crosstrek Service Manual: Removal

EXTERIOR/INTERIOR TRIM > Assist Grip

REMOVAL

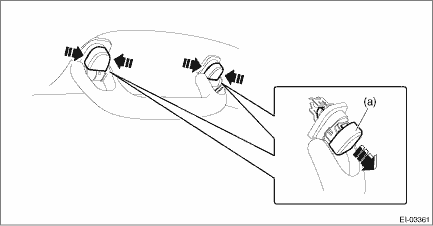

1. Pull both sides of the cap (a) using a flat tip screwdriver or similar tool wrapped with a protection tape.

2. Pull the assist grip toward yourself (toward the vehicle center) to remove.

Installation
EXTERIOR/INTERIOR TRIM > Assist GripINSTALLATIONInstall each part in the reverse order of removal. ...
