Subaru Crosstrek Service Manual: Removal

ENTERTAINMENT > Rear Accessory Power Supply Socket

REMOVAL

1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. NOTE">

2. Remove the console box assembly. Console Box > REMOVAL">

3. Remove the socket assembly.

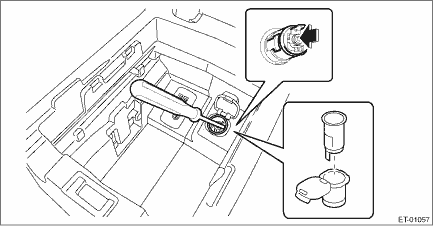

(1) While releasing the claw inside, press it in from the rear to remove the socket assembly.

(2) Remove the cap - socket.

Wiring diagram
ENTERTAINMENT > Rear Accessory Power Supply SocketWIRING DIAGRAMRefer to “Rear Accessory Power Supply Socket System” in the wiring diagram. Rear Accessory Power Supply Socket System &g ...
