CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Transfer Clutch

REMOVAL

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL">

2. Remove the extension case. Extension Case > REMOVAL">

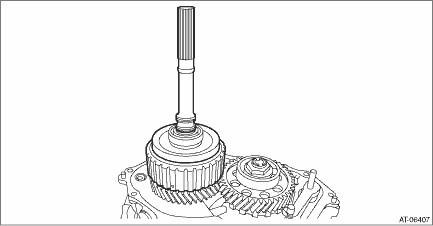

3. Remove the transfer clutch assembly.

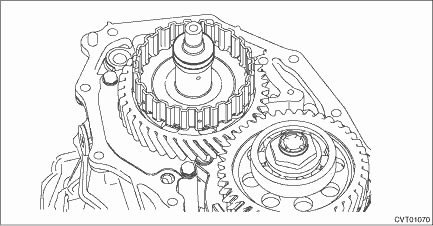

4. Remove the thrust bearing.

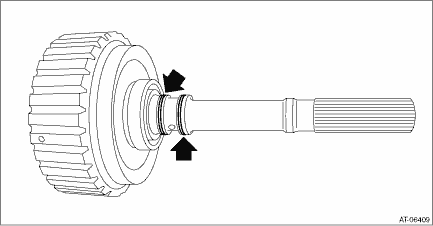

5. Remove the seal ring from transfer clutch assembly.

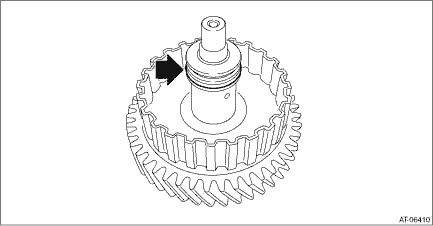

6. Remove the seal ring from the transfer driven gear assembly.

Adjustment
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Transfer ClutchADJUSTMENT1. Install the transfer clutch assembly to the extension case with the transfer driven gear shims and thrust bearings removed.2. ...

Assembly
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Transfer ClutchASSEMBLY1. Install the transfer clutch piston.NOTE:Apply CVTF to the transfer clutch piston lip.2. Install the return spring.3. Install th ...
