Subaru Crosstrek Service Manual: Removal

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Torque Converter Assembly

REMOVAL

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL">

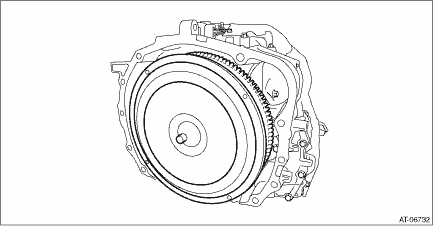

2. Pull out the torque converter assembly horizontally.

CAUTION:

Do not scratch the inside of engaging parts.

3. Remove the O-ring from the input shaft.
