Subaru Crosstrek Service Manual: Removal

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Secondary Speed Sensor

REMOVAL

CAUTION:

Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If adhesion occurs, replace with a new part.

When secondary speed sensor is removed, CVTF leaks. After installing the secondary speed sensor, adjust the CVTF level.

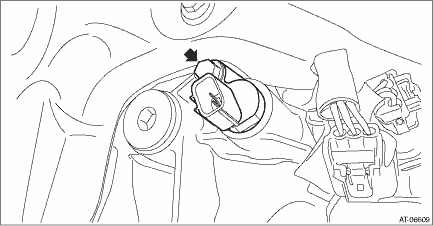

1. Lift up the vehicle.

2. Remove the harness connector from secondary speed sensor.

3. Remove the secondary speed sensor.

Inspection
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Secondary Speed SensorINSPECTION1. Set the ST between the TCM and bulkhead harness.ST 18460AA040CHECK BOARD2. Set the probe of oscilloscope to the che ...

Installation
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Secondary Speed SensorINSTALLATIONCAUTION:• Be sure to prevent water or oil from contacting the connector terminal of secondary speed sensor. If ad ...
