Subaru Crosstrek Service Manual: Removal

CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Oil Pump

REMOVAL

1. Remove the transmission assembly from the vehicle. Automatic Transmission Assembly > REMOVAL">

2. Remove the torque converter assembly. Torque Converter Assembly > REMOVAL">

3. Remove the oil pump chain cover. Oil Pump Chain > REMOVAL">

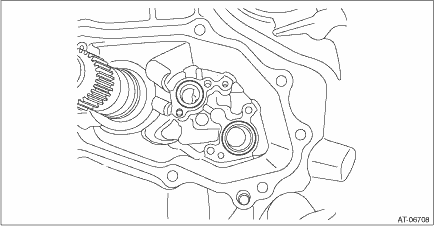

4. Remove the oil pump and the plate.

5. Remove the O-ring.

Inspection
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Oil PumpINSPECTIONCheck the following items.• Check the oil pump for damage and wear.• Rotate the oil pump by hand, and check that it rotates ...

Installation
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Oil PumpINSTALLATION1. Install the O-ring.NOTE:• Use new O-rings.• Apply CVTF to the O-ring.2. Install the plate and the oil pump.NOTE:Apply ...
