CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Air Breather Hose

REMOVAL

1. FRONT DIFFERENTIAL SIDE

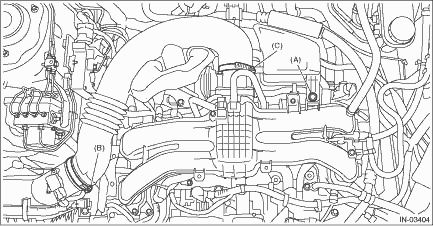

1. Remove the clip (A) from the air intake boot.

2. Loosen the clamp (B) connecting the air intake boot and air cleaner case (rear).

3. Loosen the clamp (C) which connects the air intake boot and throttle body.

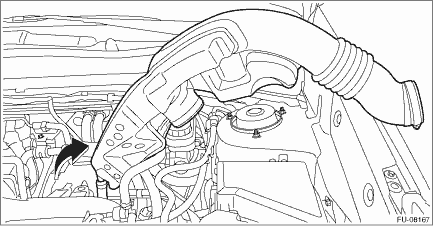

4. Remove the air intake boot from the throttle body, and move it to the left side wheel apron.

5. Remove the air breather hose.

2. TRANSMISSION CASE SIDE

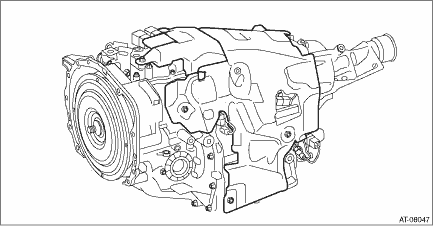

1. Remove the transmission assembly. Automatic Transmission Assembly > REMOVAL">

2. Remove the transmission case cover.

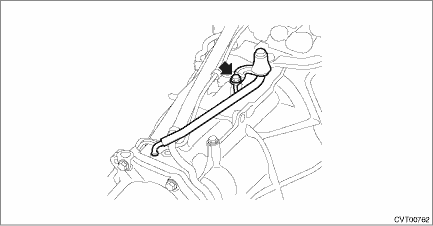

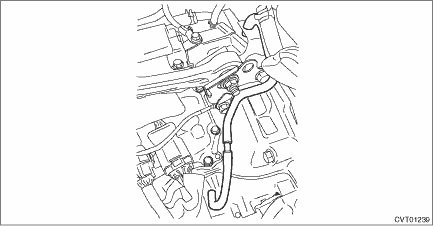

3. Remove the air breather hose.

4. Remove the air breather cap.

Inspection
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Air Breather HoseINSPECTIONCheck the hose for peeling, crack or clogging. ...

Installation
CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Air Breather HoseINSTALLATION1. FRONT DIFFERENTIAL SIDEInstall in the reverse order of removal.NOTE:Securely insert the air breather hose until the hose ...
