Subaru Crosstrek Owners Manual: Rear center seatbelt

Rear center seatbelt

  1. Center seatbelt tongue plate
  2. Connector (tongue)
  3. Connector (buckle)
  4. Center seatbelt buckle

Rear center seatbelt

WARNING

Fastening the seatbelt with the webbing twisted can increase the risk or severity of injury in an accident.

When fastening the belt after it is pulled out from the retractor, especially when inserting the connector's tongue plate into the mating buckle (on right-hand side), always check that the webbing is not twisted.

Rear center seatbelt

WARNING

Rear center seatbelt

1. Raise the head restraint to the extended position. Do not remove the head restraint.

Rear center seatbelt

2. Remove the tongue plate from the belt holder on the right side of the cargo area and pull out the seatbelt slowly.

Rear center seatbelt

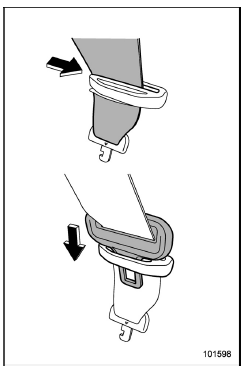

3. After drawing out the seatbelt, pass it through the belt guide as follows: First insert one edge of the belt into the open gap in the belt guide; then slide the rest of the belt in, so that the whole belt fits inside.

Rear center seatbelt

4. After confirming that the webbing is not twisted, insert the connector (tongue) attached at the webbing end into the buckle on the right-hand side until a click is heard.

Rear center seatbelt

5. Insert the center seatbelt tongue plate into the center seatbelt buckle marked "CENTER" on the left-hand side until it clicks.

Rear center seatbelt

6. To make the lap part tight, pull up on the shoulder belt.

7. Place the lap belt as low as possible on your hips, not on your waist.

Unfastening the seatbelt

Unfastening the seatbelt

1. Push the release button of the center seatbelt buckle (on the left-hand side) to unfasten the seatbelt.

NOTE

When the seatback is folded down for greater cargo area, it is necessary to disconnect the connector.

Unfastening the seatbelt

2. Insert a tongue plate or other hard pointed object into the slot in the connector (buckle) on the right-hand side and push it in. The connector (tongue) plate will then disconnect from the buckle.

Unfastening the seatbelt

3. Allow the retractor to roll up the belt.

You should hold the webbing end and guide it back into the retractor while it is rolling up. Insert the connector (tongue) into the belt holder.

Unfastening the seatbelt

CAUTION
