Subaru Crosstrek Owners Manual: Radio waves used for the keyless access with push-button start system

Subaru Crosstrek Owners Manual / Keys and doors / Keyless access with push-button start system (if equipped) / Safety precautions / Radio waves used for the keyless access with push-button start system

The keyless access with push-button start system uses radio waves of 134 kHz, in addition to the radio waves used for the remote keyless entry system. The radio waves are periodically output from the antennas installed on the vehicle as shown in the following illustration.

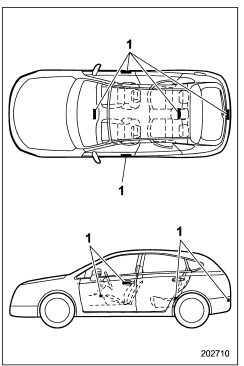

Radio waves used for the keyless access with push-button start system

1) Antenna

Regarding setting
NOTE The operational/non-operational setting for the keyless access function can be changed. For the setting procedure, refer to "Disabling keyless access function" 2-17. The setting can ...

Locking and unlocking with "keyless access" entry function
...
