Subaru Crosstrek Service Manual: Keyless access system Wiring diagram

Subaru Crosstrek Service Manual / Wiring system / Keyless access system Wiring diagram

WIRING SYSTEM > Keyless Access System

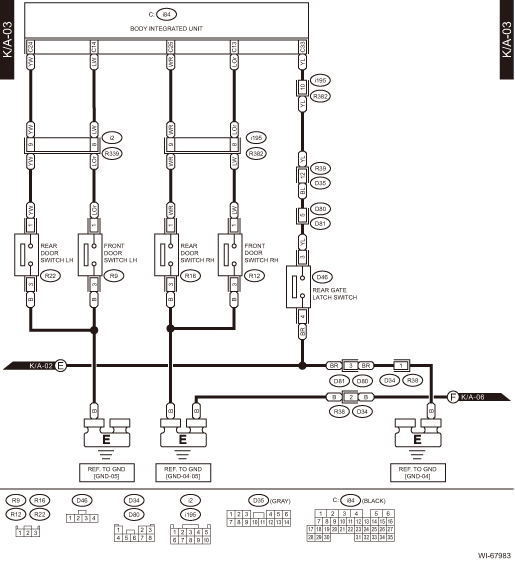

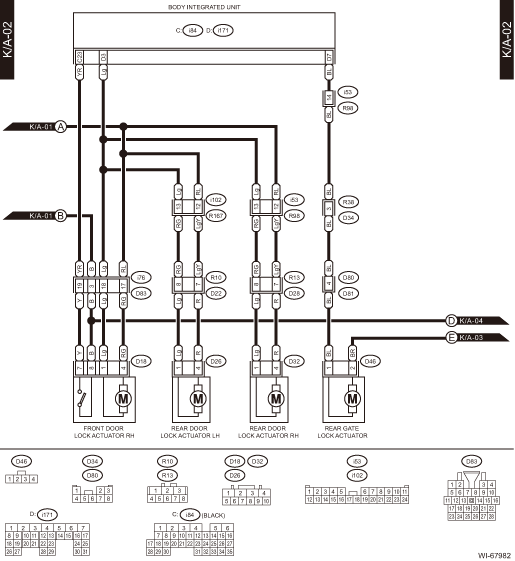

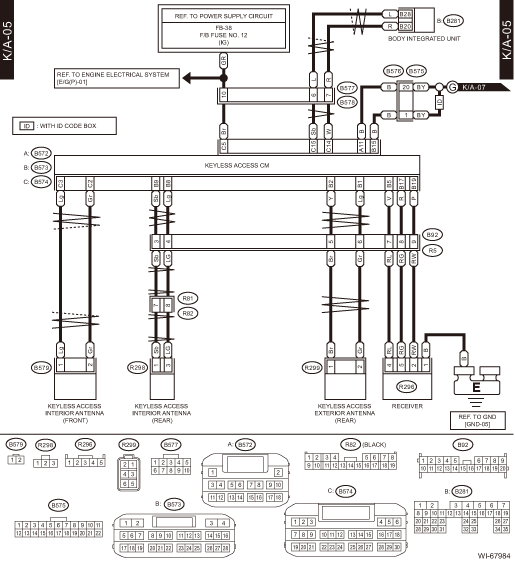

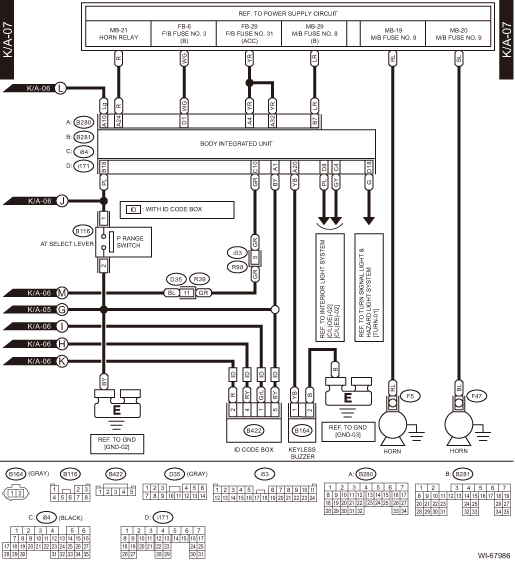

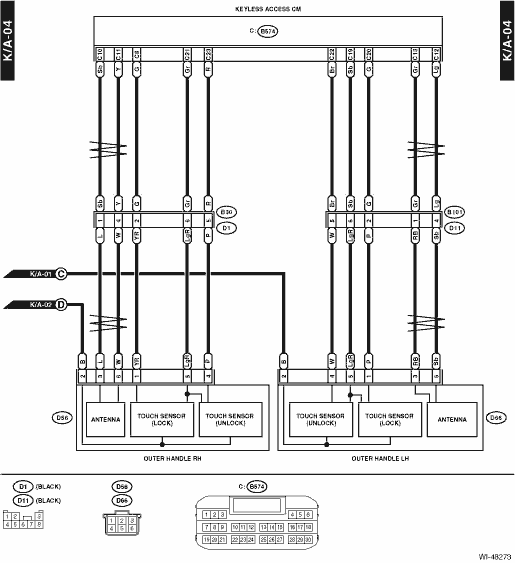

WIRING DIAGRAM
