Subaru Crosstrek Owners Manual: Instrument panel

Instrument panel

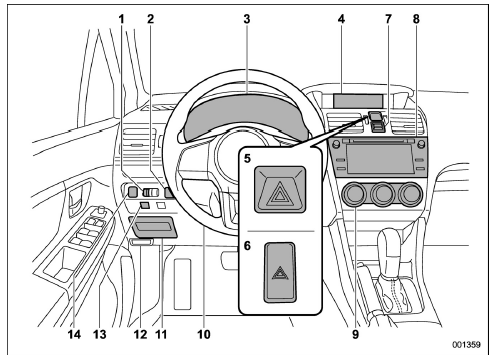

  1. Illumination brightness control
  2. Vehicle Dynamics Control OFF switch
  3. Combination meter
  4. Information display (page 3-32)/Multi function display
  5. Hazard warning flasher switch (models with multi function display)
  6. Hazard warning flasher switch (models without multi function display)
  7. Multi function display control switches
  8. Audio
  9. Climate control
  10. Tilt/telescopic steering
  11. Fuse box
  12. Hood lock release knob
  13. BSD/RCTA OFF switch
  14. Steering responsive fog lights OFF switch

NOTE

For models with the EyeSight system: Refer to the Owner's Manual supplement for the EyeSight system.
