Subaru Crosstrek Service Manual: Installation

LUBRICATION(H4DO) > Oil Pressure Switch

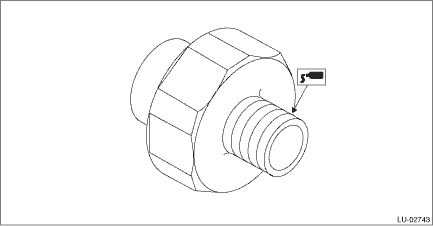

1. Apply liquid gasket to the oil pressure switch threads.

Liquid gasket:

THREE BOND 1324 (Part No. 004403042) or equivalent

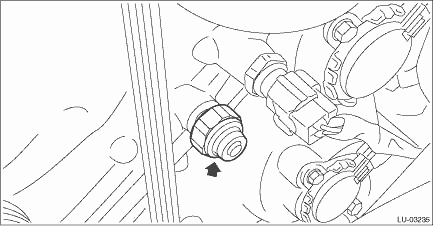

2. Install the oil pressure switch to the chain cover.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

3. Connect the terminal to the oil pressure switch.

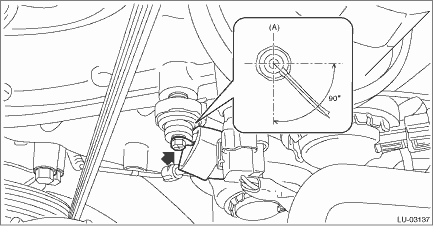

The oil pressure switch harness must be tightened within the range of a 90° angle as shown below.

Tightening torque:

1.5 N·m (0.2 kgf-m, 1.1 ft-lb)


Upper side of the engine

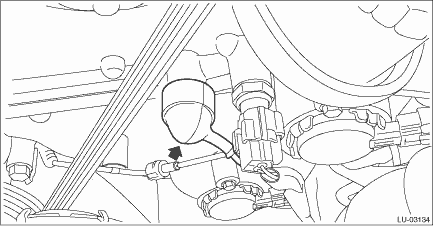

4. Attach the rubber cap.
