Subaru Crosstrek Service Manual: Installation

HVAC SYSTEM (HEATER, VENTILATOR AND A/C) > Evaporator Sensor

INSTALLATION

CAUTION:

Make sure that the water seal packing on the cover attachment area is securely attached.

Replace the O-rings with new parts, and then apply compressor oil.

Before handling the airbag system components, refer to “CAUTION” of “General Description” in “AIRBAG SYSTEM”. General Description > CAUTION">

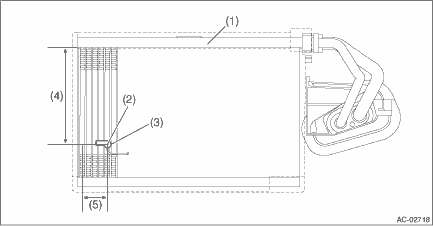

1. Install the thermostat - cooling at the position shown in the figure below.

(1)

Evaporator ASSY - cooling

(3)

Thermostat - cooling

(5)

Fifth row fin from the left end

(2)

Center

(4)

130 mm (5.12 in) from the upper end of the fins

2. Install each part in the reverse order of removal.

3. Charge refrigerant. Refrigerant Charging Procedure > PROCEDURE">
