Subaru Crosstrek Service Manual: Installation

EXTERIOR/INTERIOR TRIM > Upper Inner Trim

INSTALLATION

CAUTION:

When reusing the tether clip on the upper part of the trim panel - front pillar UPR, check that there is no damage to the tether clip. If the tether clip is damaged, always replace it with a new tether clip. If the tether clip is damaged, its holding force is reduced and the trim panel - front pillar UPR may come off.

Do not reuse the tether clip removed from the upper part of the trim panel - front pillar UPR. Always replace with a new part.

Do not reuse the upper clips of the trim panel - center pillar UPR. Once the clip is removed, its holding force is reduced. Be sure to replace it with a new clip.

Before installing the trim panel - front pillar UPR, check the condition of protective non-woven fabric (white) of the curtain airbag. If it is damaged (airbag module cloth is exposed), replace the curtain airbag module assembly with a new part.

1. Remove the remaining tether clips from the vehicle body.

2. Install the trim panel - front pillar UPR.

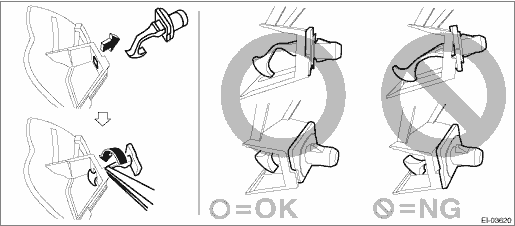

(1) Check the installation status of the tether clips and install the trim panel - front pillar UPR.

3. Install each part in the reverse order of removal.

Tightening torque

Front seat belt: General Description > COMPONENT">

Trim panel - center pillar UPR: 7.5 N·m (0.76 kgf-m, 5.5 ft-lb)
