Subaru Crosstrek Service Manual: Installation

EXTERIOR/INTERIOR TRIM > Front Grille

INSTALLATION

CAUTION:

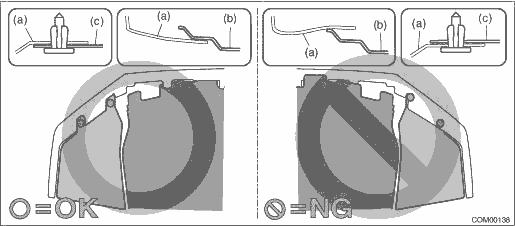

Install so that the front end of the under cover (b) comes inside the bumper face - front (a), and the front end of the mud guard (c) comes outside the bumper face - front (a).

Before installing the bumper face, match the claws on the bracket - front bumper with the engaging position of flange section on the bumper face side. If the engaging position is not correct, the flange section may be broken or the clearance between fender panel and bumper face may not be uniform.

1. Install each part in the reverse order of removal.

2. Adjust the fog light beam. (Model with fog light) Front Fog Light Assembly > ADJUSTMENT">

Front grille
...

Removal
EXTERIOR/INTERIOR TRIM > Front GrilleREMOVAL1. Disconnect the ground cable from battery. NOTE">2. Remove the bumper face - front. Front Bumper > REMOVAL">3. Remove the front gr ...
