Subaru Crosstrek Service Manual: Installation

EXHAUST(H4DO) > Center Exhaust Pipe

INSTALLATION

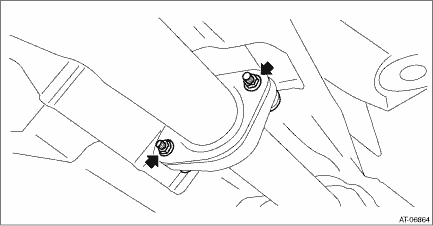

1. Install the center exhaust pipe upper cover to the center exhaust pipe.

Tightening torque:

13 N·m (1.3 kgf-m, 9.6 ft-lb)

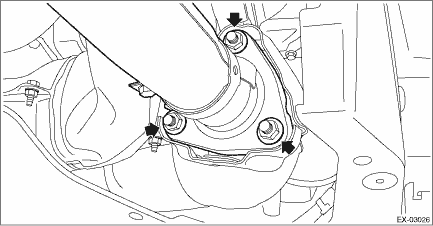

2. Temporarily tighten the nuts which secure the center exhaust pipe to the front exhaust pipe.

NOTE:

Use a new gasket.

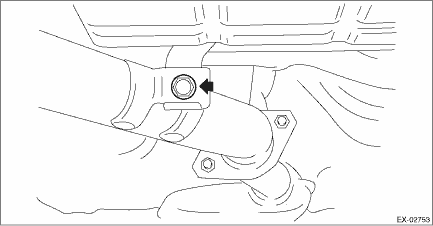

3. Install the bolts, springs, and nuts which secure the rear exhaust pipe to the center exhaust pipe.

NOTE:

Use a new gasket.

Tightening torque:

18 N·m (1.8 kgf-m, 13.3 ft-lb)

4. Tighten the bolts which secure the center exhaust pipe to the hanger bracket.

Tightening torque:

35 N·m (3.6 kgf-m, 25.8 ft-lb)

5. Tighten the nuts which secure the center exhaust pipe to the front exhaust pipe.

Tightening torque:

42.5 N·m (4.3 kgf-m, 31.3 ft-lb)
