FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Main Relay

INSPECTION

1. Check that the main relay has no deformation, cracks or other damages.

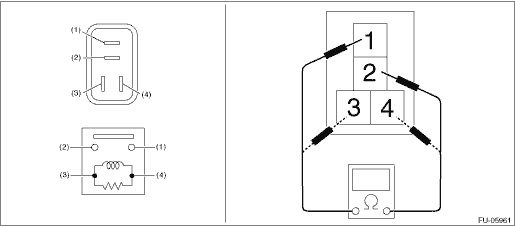

2. Measure the resistance between main relay terminals.

Terminal No.

Standard

1 and 2

1 M? or more

3 and 4

130.4 — 230.8 ? (when 20°C (68°F))

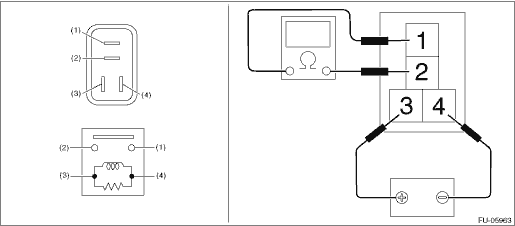

3. Connect battery positive terminal to terminal No. 3 and battery ground terminal to terminal No. 4, and measure the resistance between the main relay terminals.

Terminal No.

Standard

1 and 2

Less than 1 ?

Main relay
...

Removal
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Main RelayREMOVAL1. Disconnect the ground cable from battery.2. Remove the glove box. Glove Box > REMOVAL">3. Remove the main relay from relay bloc ...
