Subaru Crosstrek Service Manual: Inspection

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Fuel Sub Level Sensor

INSPECTION

1. Check that the fuel sub level sensor has no damage.

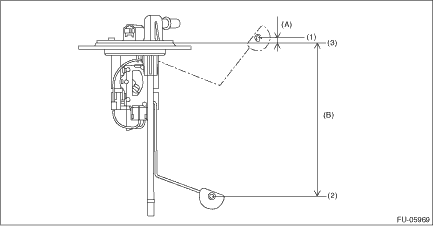

2. Measure the fuel sub level sensor float position.

(1)

FULL

(2)

EMPTY

(3)

Datum points

Float position

Standard

FULL to Datum point (A)

5.31±3.5 mm (0.209±0.138 in)

EMPTY to Datum point (B)

160.6±3.5 mm (6.32±0.138 in)

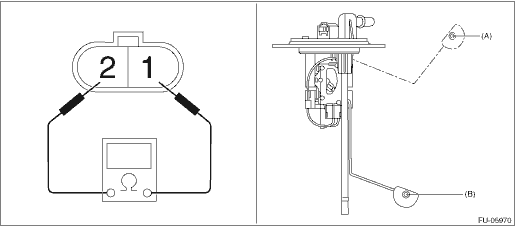

3. Measure the resistance between fuel sub level sensor terminals.

Float position

Terminal No.

Standard

FULL (A)

1 and 2

8.7±1.0 ?

EMPTY (B)

270.9±4.0 ?
