Subaru Crosstrek Service Manual: Inspection

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Engine Oil Temperature Sensor

INSPECTION

1. Check that the engine oil temperature sensor has no deformation, cracks or other damages.

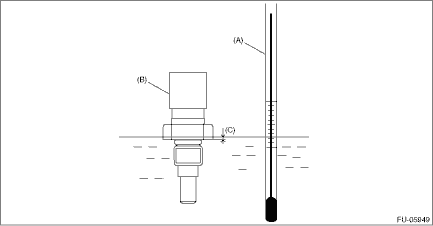

2. Immerse the engine oil temperature sensor and a thermometer in water.

CAUTION:

Take care not to allow water to get into the engine oil temperature sensor connector. Completely remove any water inside.

(A)

Thermometer

(B)

Engine oil temperature sensor

(C)

Hexagonal part height: To approx.1/3

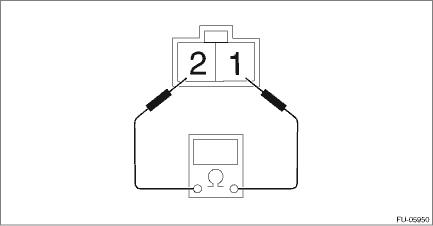

3. Raise water temperature gradually, measure the resistance between the engine oil temperature sensor terminals when the temperature is 20°C (68°F) and 80°C (176°F).

NOTE:

Agitate the water for even temperature distribution.

Water temperature

Terminal No.

Standard

20°C (68°F)

1 and 2

Approx. 2.45±0.2 k?

80°C (176°F)

Approx. 0.318±0.013 k?

Engine oil temperature sensor
...

Removal
FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Engine Oil Temperature SensorREMOVALCAUTION:If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke ...
