Subaru Crosstrek Service Manual: Inspection

FRONT SUSPENSION > Front Ball Joint

INSPECTION

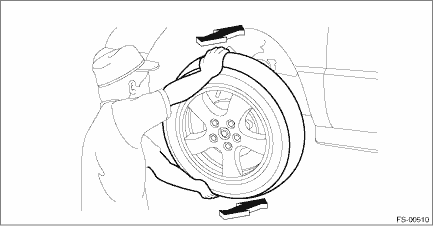

1. Check that there is no looseness by moving the upper and lower portions of front tire in an axial direction with the brake pedal depressed.

Looseness exists > Replace the ball joint assembly. Front Ball Joint > REMOVAL">

2. Check that there is no looseness by moving the upper and lower portions of front tire in an axial direction with the brake pedal released.

Looseness exists > Check the hub unit COMPL - front axle. Front Hub Unit Bearing > INSPECTION">

3. Replace the ball joint assembly if the dust cover is damaged when visually inspecting the dust cover.

Front ball joint
...

Removal
FRONT SUSPENSION > Front Ball JointREMOVAL1. Lift up the vehicle, and then remove the front wheels.2. Remove the under cover - front. Front Under Cover > REMOVAL">3. Remove the clamp - ...
