CONTINUOUSLY VARIABLE TRANSMISSION(TR580) > Control Valve Body

INSPECTION

Check each part for damage or dust.

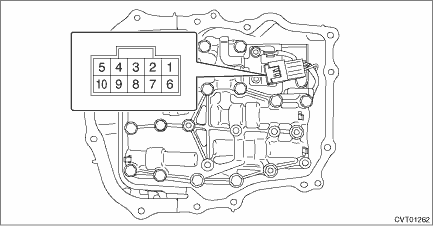

Measure the resistance of each solenoid, sensor and ground wire.

NOTE:

Measurement should be performed at a temperature of 20°C (68°F).

Solenoid

Solenoid

Terminal No.

Standard

Primary UP solenoid

No. 2 — control valve body

Approx. 10 — 13.5 ?

Secondary solenoid

No. 3 — control valve body

Approx. 5 — 7 ?

F&R clutch solenoid

No. 4 — control valve body

Approx. 4 — 6 ?

Primary DOWN solenoid

No. 7 — control valve body

Approx. 10 — 13.5 ?

Lock-up duty solenoid

No. 9 — control valve body

Approx. 10 — 13.5 ?

AWD solenoid

No. 10 — control valve body

Approx. 2 — 4.5 ?

Oil temperature sensor

Sensor

Terminal No.

Standard

At 20°C (68°F)

Oil temperature sensor

No. 1 — No. 6

Approx. 2.5 k?

Transmission ground

Terminal No.

Standard

No. 8 — control valve body

Less than 1 ?

Control valve body
...

Removal
