Subaru Crosstrek Owners Manual: Fuses and circuits

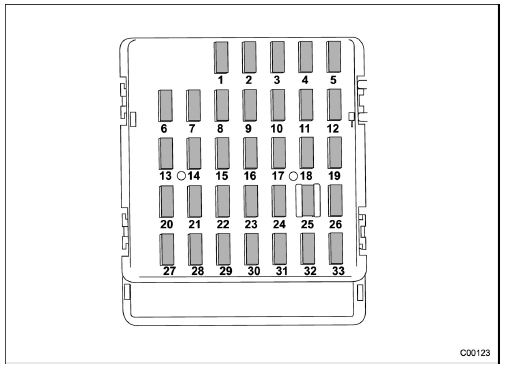

Fuse panel located in the passenger compartment

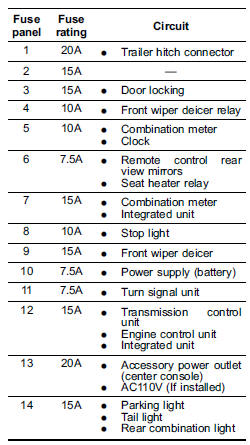

Fuse panel located in the passenger compartment

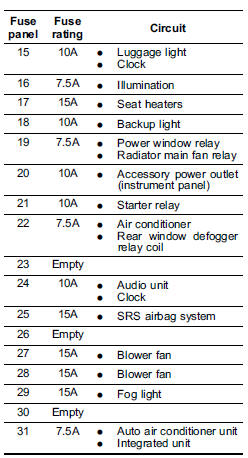

Fuse panel located in the passenger compartment

Fuse panel located in the passenger compartment

Fuse panel located in the passenger compartment

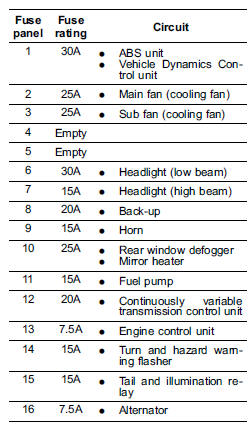

Fuse panel located in the engine compartment

Fuse panel located in the engine compartment

A) Main fuse

Fuse panel located in the engine compartment

Fuse panel located in the engine compartment
