Subaru Crosstrek Service Manual: Forced drive

SUNROOF/T-TOP/CONVERTIBLE TOP (SUNROOF) > Glass Lid

FORCED DRIVE

If the lid assembly - sunroof does not operate or the motor assembly is not supplied with power, move the lid assembly - sunroof using the hexagon wrench.

Preparation tool:

Hexagon wrench: width across flat 4 mm (0.16 in)

CAUTION:

After a forced operation, make sure to perform an initialize operation. Sunroof Control System > OPERATION">

1. Disconnect the ground cable from battery. NOTE">

2. Remove the light assembly - map. Spot Map Light > REMOVAL">

3. Remove the stereo camera cover assembly. (Models with EyeSight) Stereo Camera > REMOVAL">

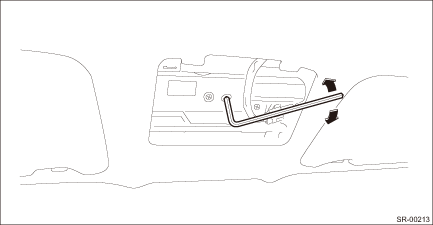

4. Insert the hexagon wrench securely until it touches the motor shaft end.

5. Turn the hexagon wrench, and move the lid assembly - sunroof.

Turning right, the lid assembly - sunroof opens.

Turning left, the lid assembly - sunroof closes.

CAUTION:

Be careful not to damage the adjacent parts with the rod end when moving the lid assembly - sunroof with the hexagon wrench.
