Subaru Crosstrek Owners Manual: Except U.S.-spec. models (type B)

Except U.S.-spec. models (type B)

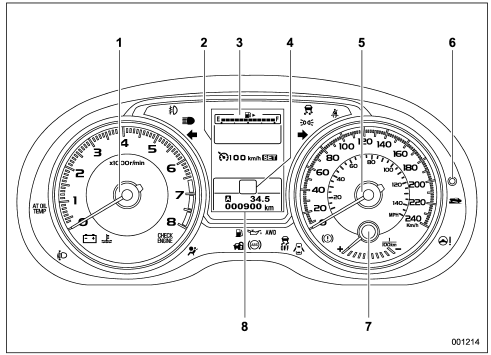

The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.

  1. Tachometer
  2. Multi information display
  3. Fuel gauge
  4. Select lever/gear position indicator
  5. Speedometer
  6. Trip meter A/B selection and trip meter reset knob
  7. ECO gauge
  8. Trip meter and odometer
Except U.S.-spec. models (type A)
The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration. Tachometer Trip meter and odometer Sel ...

Warning and indicator lights
Mark Name Seatbelt warning light Front passenger's seatbelt warning light SRS airbag system warning light Front pass ...
