Subaru Crosstrek Owners Manual: Except U.S.-spec. models (type A)

Except U.S.-spec. models (type A)

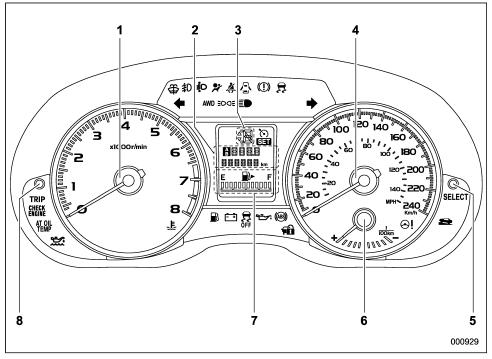

The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.

  1. Tachometer
  2. Trip meter and odometer
  3. Select lever/gear position indicator
  4. Speedometer
  5. Information display selection knob
  6. ECO gauge
  7. Fuel gauge
  8. Trip meter A/B selection and trip meter reset knob
U.S.-spec. models (type B)
The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration. Tachometer Multi information display F ...

Except U.S.-spec. models (type B)
The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration. Tachometer Multi information display F ...
