Subaru Crosstrek Service Manual: Dtc p0125 insufficient coolant temperature for closed loop fuel control

Subaru Crosstrek Service Manual / Engine (diagnostics)(h4do) / Diagnostic procedure with diagnostic trouble code (dtc) / Dtc p0125 insufficient coolant temperature for closed loop fuel control

ENGINE (DIAGNOSTICS)(H4DO) > Diagnostic Procedure with Diagnostic Trouble Code (DTC)

DTC P0125 INSUFFICIENT COOLANT TEMPERATURE FOR CLOSED LOOP FUEL CONTROL

DTC detecting condition:

Detected when two consecutive driving cycles with fault occur.

Trouble symptom:

Engine does not return to idle.

CAUTION:

After servicing or replacing faulty parts, perform Clear Memory Mode Clear Memory Mode > OPERATION">, and Inspection Mode Inspection Mode > PROCEDURE">.

STEPCHECKYESNO

1.CHECK ENGINE COOLANT.

Check the following items:

Amount of engine coolant

Engine coolant freeze

Contamination of engine coolant

Is the check result OK?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC P0125 INSUFFICIENT COOLANT TEMPERATURE FOR CLOSED LOOP FUEL CONTROL">Go to Step 2.

Fill or replace the engine coolant. Engine Coolant > REPLACEMENT">

2.CHECK THERMOSTAT.

Does the thermostat remain opened?

Replace the thermostat. Thermostat">

Replace the engine coolant temperature sensor. Engine Coolant Temperature Sensor">

1. OUTLINE OF DIAGNOSIS

Detect the malfunction of engine coolant temperature output property.

Judge as NG when engine coolant temperature does not rise to the specified value after predetermined time has elapsed since engine start.

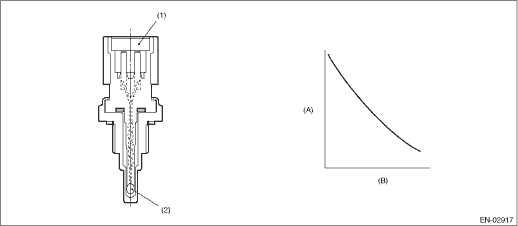

2. COMPONENT DESCRIPTION

(A)

Resistance value (k?)

(B)

Temperature °C (°F)

(1)

Connector

(2)

Thermistor element

3. EXECUTION CONDITION

Secondary parameters

Execution condition

Battery voltage

≥ 10.9 V

Engine speed

≥ 500 rpm

Engine coolant temperature at engine start

< −15 &#x00B0;C (5 &#x00B0;F)

4. GENERAL DRIVING CYCLE

Perform the diagnosis only once after starting the engine from cold condition.

5. DIAGNOSTIC METHOD

If the duration of time while the following conditions are met is longer than the time indicated, judge as NG.

Judgment value

Malfunction Criteria

Threshold Value

Engine coolant temperature

< −15 &#x00B0;C (5 &#x00B0;F)

Elapsed time after starting the engine

(At the time of (The smaller value of either Engine coolant temperature or Intake air temperature at engine start) ≥ −23.3&#x00B0;C (−9.9&#x00B0;F))

≥ 120 s

or

(At the time of (The smaller value of either Engine coolant temperature or Intake air temperature at engine start) < −23.3&#x00B0;C (−9.9&#x00B0;F))

≥ 300 s

Time needed for diagnosis: Less than 1 second

Malfunction indicator light illumination: Illuminates when malfunction occurs in 2 continuous driving cycles.
