Subaru Crosstrek Service Manual: Dtc c0042 power supply voltage failure

VEHICLE DYNAMICS CONTROL (VDC) (DIAGNOSTICS) > Diagnostic Procedure with Diagnostic Trouble Code (DTC)

DTC C0042 POWER SUPPLY VOLTAGE FAILURE

DTC detecting condition:

Improper VDCCM&H/U power supply voltage

Trouble symptom:

ABS does not operate.

EBD may not operate.

VDC does not operate.

EyeSight does not operate.

NOTE:

Warning lights go off if voltage returns.

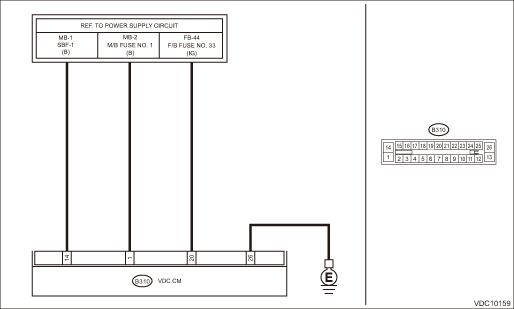

Wiring diagram:

Vehicle dynamics control system Vehicle Dynamics Control System > WIRING DIAGRAM">

STEPCHECKYESNO

1.CHECK GENERATOR.

1) Start the engine.

2) Run the engine at idle after warming up.

3) Measure the voltage between generator terminal B and chassis ground.

Terminals

Generator terminal B (+) — Chassis ground (−):

Is the voltage 10 — 15 V?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC C0042 POWER SUPPLY VOLTAGE FAILURE">Go to Step 2.

Repair the generator.

2.CHECK BATTERY TERMINAL.

Turn the ignition switch to OFF.

Are the positive and negative battery terminals clamped tightly?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC C0042 POWER SUPPLY VOLTAGE FAILURE">Go to Step 3.

Install the battery terminal correctly.

3.CHECK VDCCM&H/U INPUT VOLTAGE.

1) Disconnect the connector from the VDCCM&H/U.

2) Run the engine at idle.

3) Operate devices such as headlights, air conditioner, defogger, etc. which produce an electrical load.

4) Measure the voltage between VDCCM&H/U connector and chassis ground.

Connector & terminal

(B310) No. 1 (+) — Chassis ground (−):

(B310) No. 14 (+) — Chassis ground (−):

(B310) No. 20 (+) — Chassis ground (−):

Is the voltage 10 — 15 V?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC C0042 POWER SUPPLY VOLTAGE FAILURE">Go to Step 4.

Repair the power supply circuit.

4.CHECK VDCCM&H/U GROUND CIRCUIT (CHECK FOR OPEN CIRCUIT).

1) Turn the ignition switch to OFF.

2) Measure the resistance between VDCCM&H/U connector and chassis ground.

Connector & terminal

(B310) No. 26 — Chassis ground:

Is the resistance less than 10 ??

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC C0042 POWER SUPPLY VOLTAGE FAILURE">Go to Step 5.

Repair the VDCCM&H/U ground harness.

5.CHECK POOR CONTACT OF CONNECTORS.

Is there poor contact of connector between generator, battery and VDCCM&H/U?

Repair the connector.

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC C0042 POWER SUPPLY VOLTAGE FAILURE">Go to Step 6.

6.CHECK VDCCM&H/U.

1) Connect all connectors.

2) Perform the Clear Memory Mode. Clear Memory Mode">

3) Perform the Inspection Mode. Inspection Mode">

4) Read the DTC. Read Diagnostic Trouble Code (DTC)">

Is the same DTC displayed?

Replace the VDCCM&H/U. VDC Control Module and Hydraulic Control Unit (VDCCM&H/U)">

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC C0042 POWER SUPPLY VOLTAGE FAILURE">Go to Step 7.

7.CHECK DETECTION OF OTHER DTCS FOR VDC.

Read Diagnostic Trouble Code (DTC)">

Is any other DTC displayed?

Perform the diagnosis according to DTC. List of Diagnostic Trouble Code (DTC)">

Currently, it is normal. There may have been a temporary poor contact in the harness and connector or a temporary noise interference.
