Subaru Crosstrek Service Manual: Dtc b1430 in-vehicle (post evaporator) temperature sensor circuit open

HVAC SYSTEM (AUTO A/C) (DIAGNOSTICS) > Diagnostic Procedure with Diagnostic Trouble Code (DTC)

DTC B1430 IN-VEHICLE (POST EVAPORATOR) TEMPERATURE SENSOR CIRCUIT OPEN

DTC detecting condition:

In-vehicle sensor circuit is open.

Trouble symptom:

In-vehicle air temperature is falsely recognized as 25°C (77°F), and the compartment temperature is adjusted.

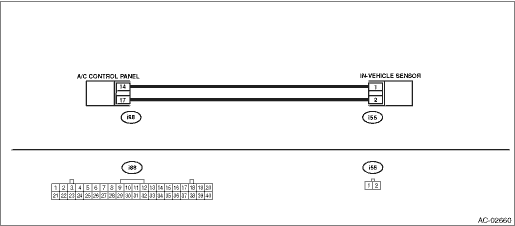

Wiring diagram:

Air conditioning system Air Conditioning System > WIRING DIAGRAM">

STEPCHECKYESNO

1.CHECK CONNECTOR.

1) Check the condition of connector connection.

2) Read the DTC using Subaru Select Monitor. Read Diagnostic Trouble Code (DTC)">

Is B1430 displayed?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B1430 IN-VEHICLE (POST EVAPORATOR) TEMPERATURE SENSOR CIRCUIT OPEN">Go to Step 2.

Even if DTC is displayed, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.

NOTE:

In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.

2.CHECK IN-VEHICLE SENSOR.

1) Disconnect the in-vehicle sensor.

2) Short the connector.

3) Read the DTC using Subaru Select Monitor. Read Diagnostic Trouble Code (DTC)">

Is B1431 displayed?

Replace the in-vehicle sensor. In-Vehicle Sensor (Auto A/C Model) > REMOVAL">

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B1430 IN-VEHICLE (POST EVAPORATOR) TEMPERATURE SENSOR CIRCUIT OPEN">Go to Step 3.

3.CHECK HARNESS.

1) Restore the temporary shorted lines made in step 2.

2) Turn the ignition switch to ON.

3) Using the tester, measure the voltage between terminals.

Connector & terminal

(i55) No. 2 (+) — No. 1 (−):

Is the voltage 4.5 — 5.0 V?

Diagnostic Procedure with Diagnostic Trouble Code (DTC) > DTC B1430 IN-VEHICLE (POST EVAPORATOR) TEMPERATURE SENSOR CIRCUIT OPEN">Go to Step 4.

Repair or replace the open circuit of harness.

4.CHECK HARNESS (OPEN CIRCUIT).

1) Disconnect the connector from the A/C control panel.

2) Using a tester, check continuity between terminals.

Connector & terminal

(i55) No. 1 — (i88) No. 14:

(i55) No. 2 — (i88) No. 17:

Is there continuity?

Replace the A/C control panel. Control Panel > REMOVAL">

Repair or replace the open circuit of harness.
