Subaru Crosstrek Service Manual: Disassembly

REAR SUSPENSION > Rear Lateral Link

DISASSEMBLY

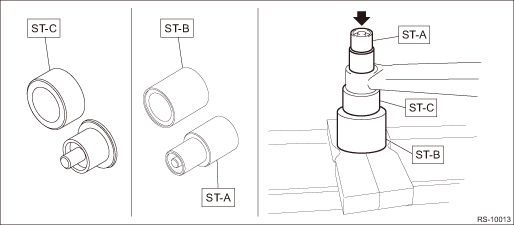

Using the ST, push out the bushing.

Preparation tool:

ST-A & ST-B: INSTALLER & REMOVER (20099AE010)

ST-C: INSTALLER & REMOVER (20099AE040)

Removal
REAR SUSPENSION > Rear Lateral LinkREMOVAL1. Disconnect the ground cable from battery. NOTE">2. Lift up the vehicle, and then remove the rear wheels.3. Remove the sensor assembly - headlig ...

Installation
REAR SUSPENSION > Rear Lateral LinkINSTALLATIONCAUTION:• Be sure to use a new self-locking nut.• Always tighten the bushing in the state where the vehicle is at curb weight and the whee ...
