Subaru Crosstrek Service Manual: Disassembly

POWER ASSISTED SYSTEM (POWER STEERING) > Steering Wheel

DISASSEMBLY

1. CROSSTREK MODEL

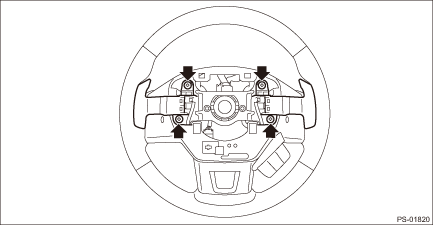

1. Remove the screw, disconnect the connector and remove the paddle shift switch. (Model with paddle shift)

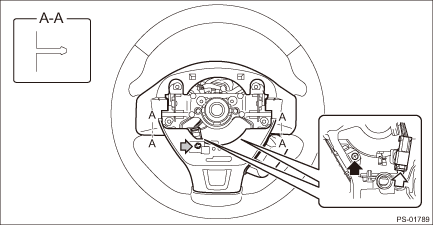

2. Release the claws and remove the screws, then detach the cover - spoke.

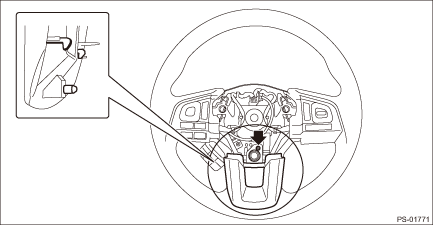

3. Remove connector and screw, and remove the cover - steering wheel LWR.

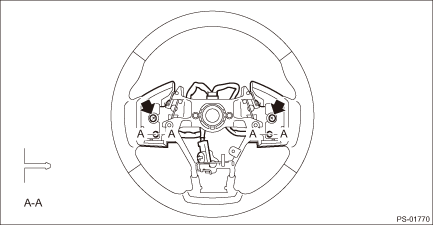

4. Release the claws and remove the screws, then detach the satellite switch.

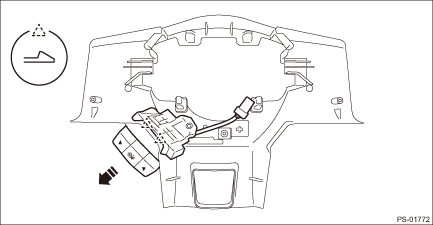

5. Release the claws, and then remove the MID switch.

Removal
POWER ASSISTED SYSTEM (POWER STEERING) > Steering WheelREMOVALCAUTION:Before handling the airbag system components, always refer to “CAUTION” of “General Description” in &ld ...

Inspection
POWER ASSISTED SYSTEM (POWER STEERING) > Steering WheelINSPECTION1. PADDLE SHIFT SWITCHCheck the resistance of paddle switch.STEPCHECKYESNO1.SHIFT-UP SWITCH CONTINUITY CHECK.1) Operate the + side o ...
