SEAT BELT SYSTEM > General Description

COMPONENT

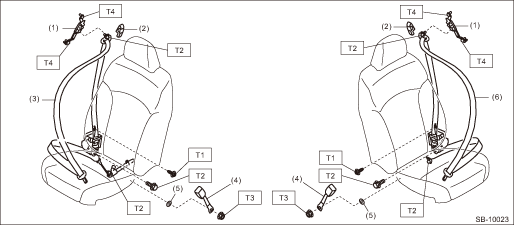

1. FRONT SEAT BELT

(1)

Adjuster ASSY - seat belt

(4)

Seat belt inner - front

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Cover through

(5)

Wave washer

T1:

7.5 (0.76, 5.5)

(3)

Seat belt outer - front (only on passenger’s side with lap seat belt pretensioner)

(6)

Seat belt outer - front

T2:

30 (3.06, 22.1)

T3:

38 (3.87, 28.0)

T4:

53 (5.4, 39.1)

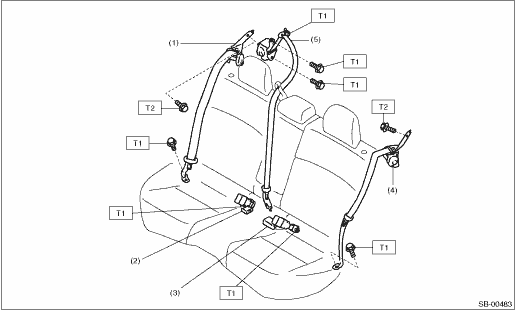

2. REAR SEAT BELT

(1)

Seat belt outer - rear RH

(4)

Seat belt outer - rear LH

Tightening torque: N·m (kgf-m, ft-lb)

(2)

Seat belt - CTR RH

(5)

Seat belt - rear shoulder CTR

T1:

30 (3.06, 22.1)

(3)

Seat belt - CTR LH

T2:

53 (5.4, 39.1)
