Base display audio set (if equipped)

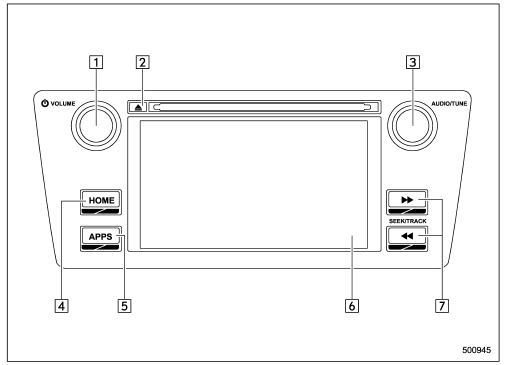

  1. Power/VOLUME knob
  2. Eject button
  3. AUDIO/TUNE knob
  4. HOME button
  5. APPS button
  6. Display
  7. SEEK/TRACK buttons

The audio set will operate only when the ignition switch is in the "ACC" or "ON" position.

NOTE

HD RadioTM Technology (if equipped) should be included as a feature in the base display audio set.

This display audio set is referred to as follows.

Audio set
Your vehicle may be equipped with one of the following audio sets. Refer to the pages indicated in this section for operating details. CAUTION Always consult your SUBARU dealer before insta ...

STARLINKTM 7.0 Multimedia Plus audio set (U.S. spec. models only, if equipped)
The audio set will operate only when the ignition switch is in the "ACC" or "ON" position. For details about how to use the STARLINKTM 7.0 Multimedia Plus audio set, refer to the STARLINKTM ...
