Subaru Crosstrek Service Manual: Assembly

FUEL INJECTION (FUEL SYSTEMS)(H4DO) > Intake Manifold

ASSEMBLY

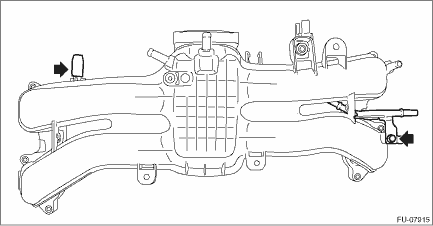

1. Install the fuel pipe and cap to the intake manifold.

Tightening torque:

6.4 N·m (0.7 kgf-m, 4.7 ft-lb)

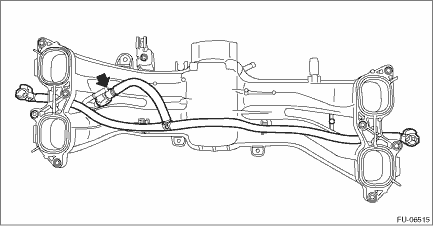

2. Install the fuel delivery pipe to the intake manifold.

CAUTION:

Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.

When connecting the quick connector, make sure to insert it all the way in before locking the slider.

When it is difficult to lock the slider, check that the connector is fully inserted.

After locking the slider, check again that the quick connector is securely connected.

NOTE:

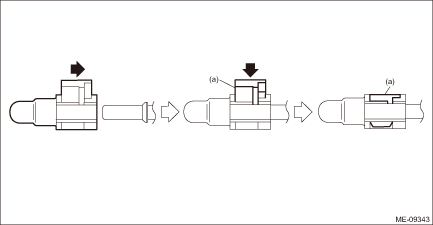

Connect the quick connector as shown in the figure.

(a)

Slider

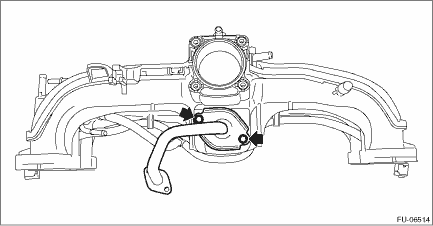

3. Temporarily install the EGR pipe to the intake manifold.

NOTE:

Use a new gasket.

Tighten the EGR pipe when installing the intake manifold.

4. Install the manifold absolute pressure sensor. Manifold Absolute Pressure Sensor > INSTALLATION">

5. Install the purge control solenoid valve. Purge Control Solenoid Valve > INSTALLATION">

6. Install the throttle body. Throttle Body > INSTALLATION">
