Subaru Crosstrek Owners Manual: Anchorage location

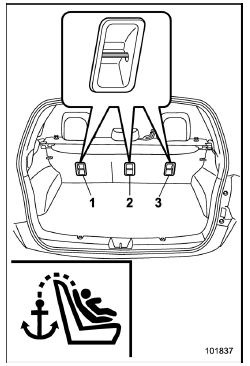

Anchorage location

  1. For left seat
  2. For center seat
  3. For right seat

Three upper anchorages are installed on the back side of the rear seatback.

Top tether anchorages
Your vehicle is equipped with three top tether anchorages so that a child restraint system having a top tether can be installed in the rear seat. When installing a child restraint system using top ...

To hook the top tether
CAUTION Except for the center seating position, remove the head restraint when mounting a child restraint system. Otherwise, it might be possible that the top tether cannot be fastened t ...
